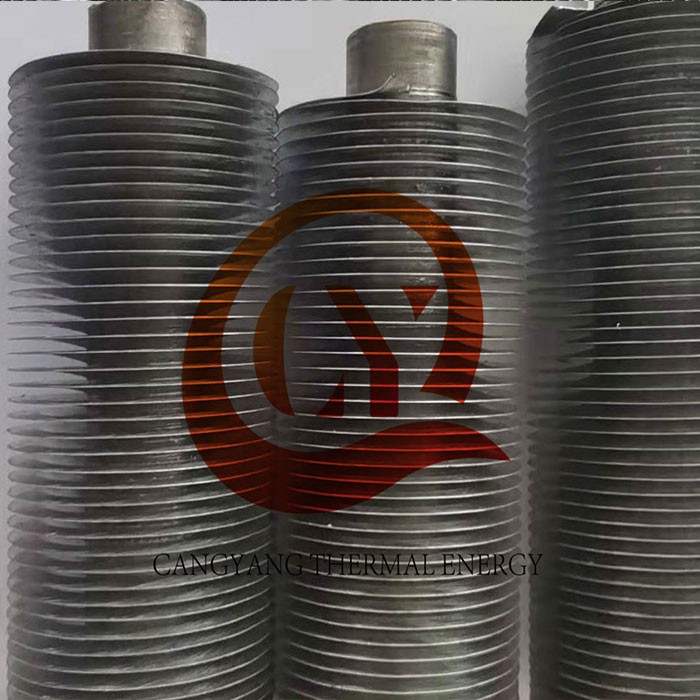

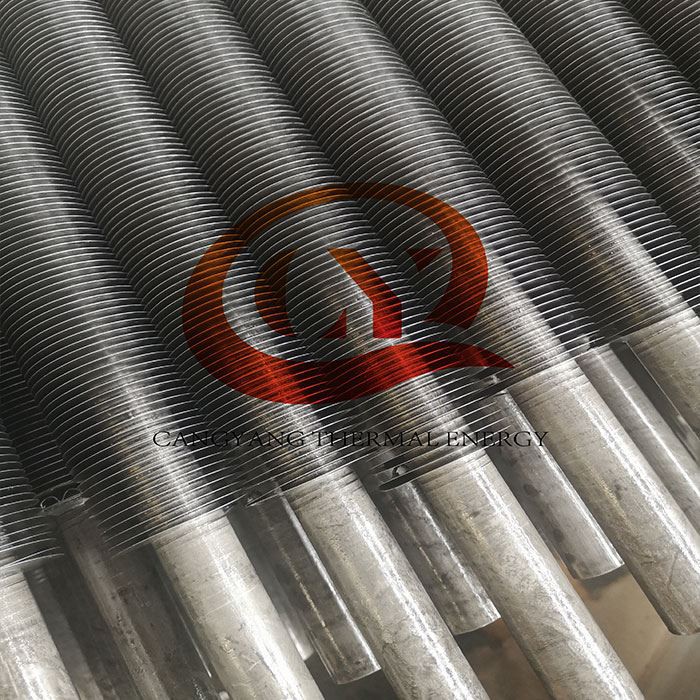

SS304 Tube with Grooved Fin Fabrication

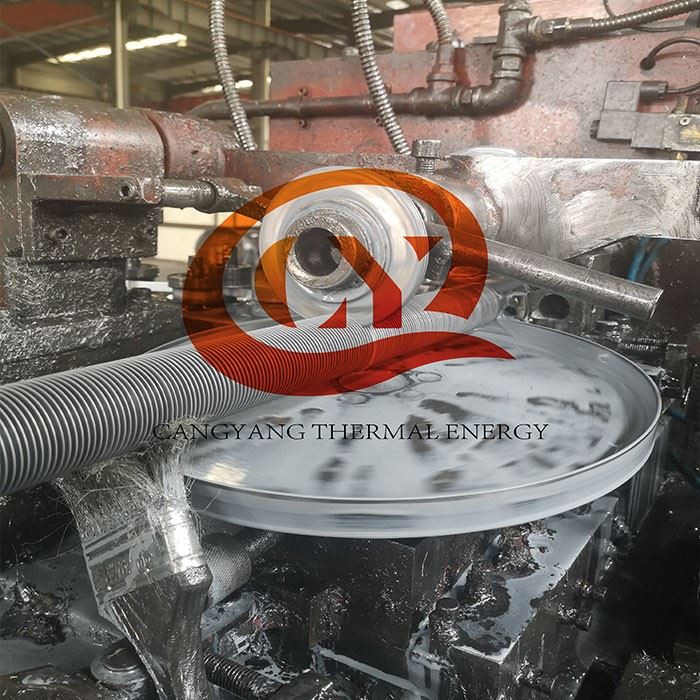

The fin material aluminum strip is wound into the previous machined groove and then securely locked at the place by back filling with the SS304 Tube material.
SS304 Tube with Grooved Fin Specifications
Tube Material: SS304, SS304L, SS316, SS316L, etc
Tube Size: 5/8’’~2’’ (15.875mm to 50.8mm)
Tube Wall thickness: 2mm Minimum
Tube Length: 60 feet (18288mm)
Fin Material: Al1060, Al1100, Copper
Fin Height: 1/4’’~5/8’’ (6.35mm to 15.875mm)
Fin thickness: 0.016’’ (0.4mm)
Fin Pitch: 4~12FPI
Package

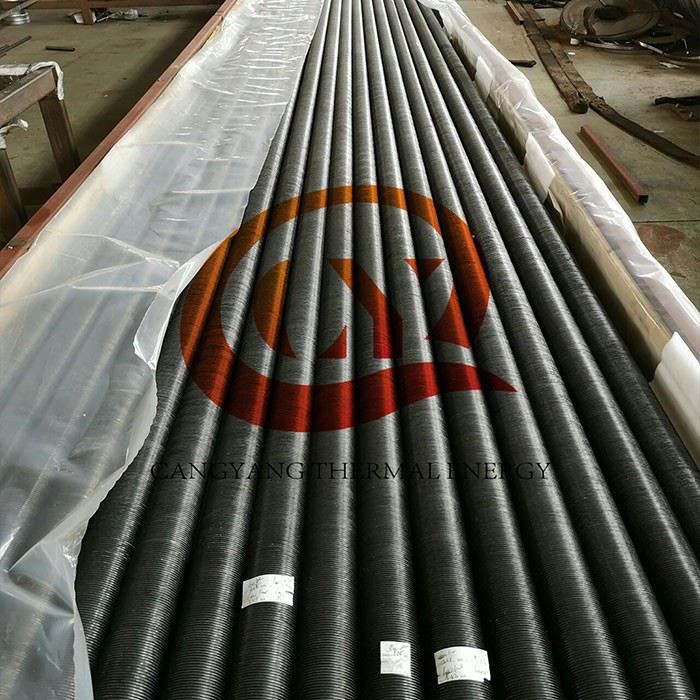

The finished fin tubes will be supplied with plastic caps at tube ends, then packaged in strong seaworthy wooden boxes with steel frame.
Advantage
Comparing with extruded fin tubes, the grooved fin tube ensures that maximum heat transfer is maintained at high tube metal temperatures with lower cost.
Weight lower than extruded fin tube, so can decrease the weight of whole air cooled heat exchanger after installed with fin tube bundles.
High heating efficiency, small volume, low resistance of wind and easy to install.
SS304/ 304L Fin Tubes offer high tensile strength, corrosion and abrasion resistance, and have long functional life to extend the lifetime for the whole air cooled heat exchanger.
SS304 Tube with grooved fin are used in various industrial applications such as boiler economizer, power plant, wast heat boiler, petrochemical and chemical engineering, refinery plant and air fin fan coolers.
Mechanical Properties for SS304 Tube
Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (% in 50mm) min | Rockwell B (HR B) max | Brinell (HB) max | Hardness |
515 | 205 | 40 | 92 | 201 | - |
Quality Control SS304 Tube with Grooved Fin
Come in material inspection on surface and dimensions, quantities
MTC inspection
Production inspection and making record
Finished fin tubes final inspection and doing package
Provide full sets of quality certificate to customers
Third party inspection is allowed.
In spite of SS304 Tube with grooved fin, we do have other stainless steel 304 fin tube
SS304 Extruded Fin
SS304 KL Type Fin Tubes
SS304 L-foot finned tubes
SS304 Overlapped L fin tubes
To avoid any misunderstanding on your enquiry, we request you to provide the following datas.
Core Tube (Base Tube) Material and Quantity
Base Tube OD * tube wall thick * length
Fin Type and Fin Material
Fin Dimensions: Fin OD * Fin Thick * Fin Pitch * Unfinned Length at two sides
