What is High Fin Tube Rolling Machine?
The high fin tube rolling machine is used to roll single or dual metal finned tubed, which is used in industrial heat exchangers. It is also named tube finning machine, extruded fin tube machine and bi-metallic fin tube machine.

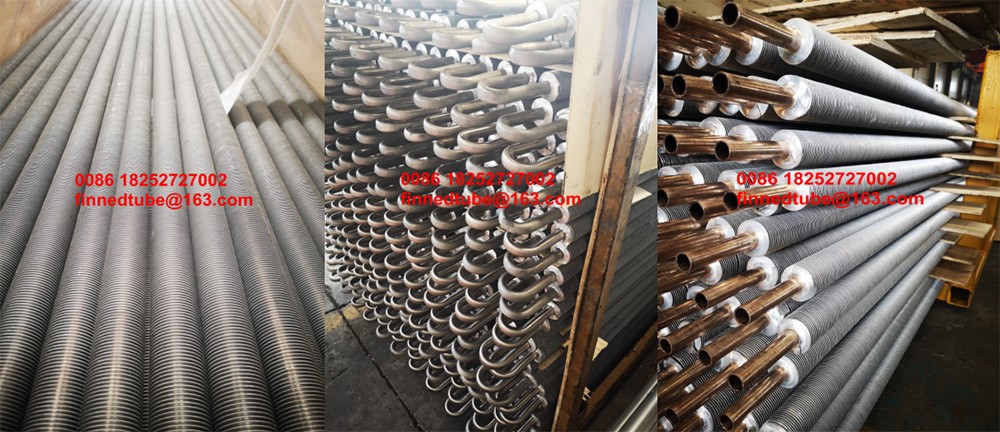

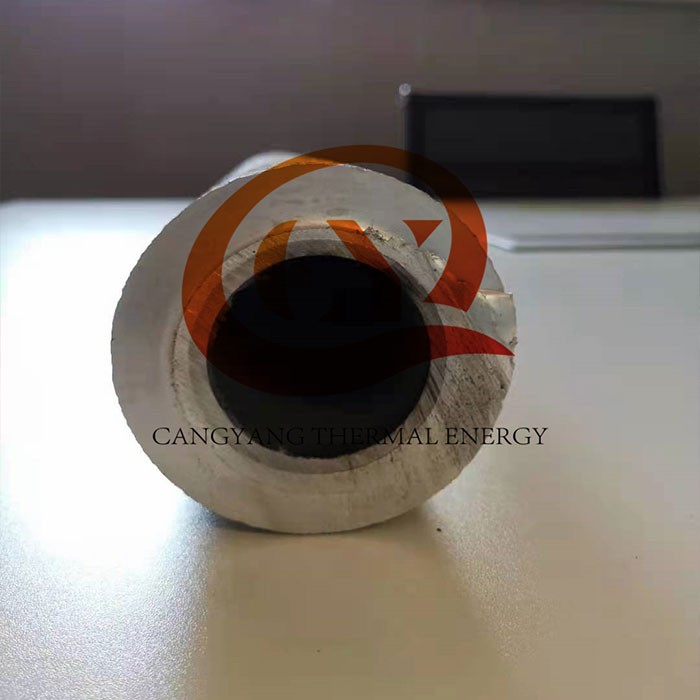

Aluminum muff tubes of different specifications are lined with copper tubes or steel tubes or carbon steel tubes (also known as base tubes), rolled and compounded by the 3 sets of cutter in the unit, and the fins are extruded at one time to achieve the effect of increasing the heat transfer area, the formed products is named high fin tube or extruded finned tube.
Structure

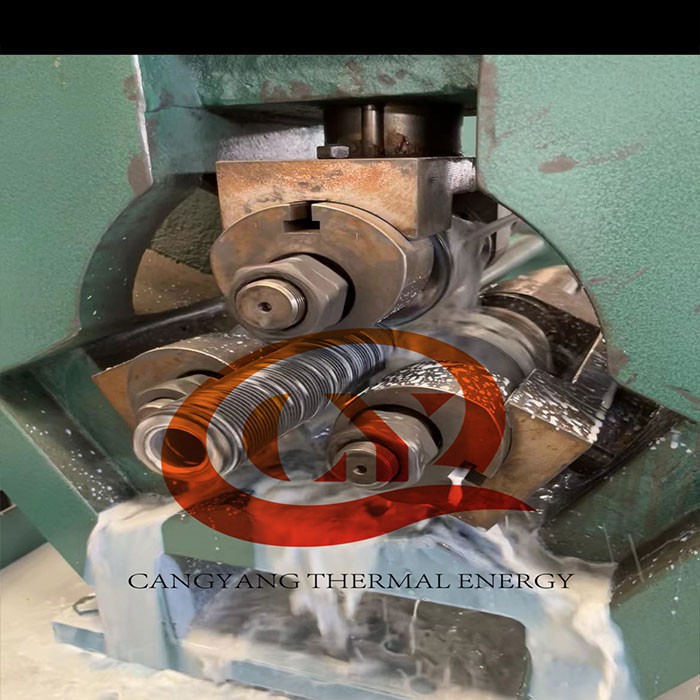

Tool holder and its body adopt the advanced dual-circular key structure to withstand torque and achieve accurate and reliable displacement.
Tool holder adopts split type design, make blade installation.
Spindle bearing can be moved using conical hydrodynamic sliding bearings to maximize the utilization.
Universal joins and shaft key link between all lines of hope pepper.
Cooling box is separated from rolling mill machine
Closely with technical data, rolling fin efficiently.
Technical Parameters of High Fin Tube Rolling Machine

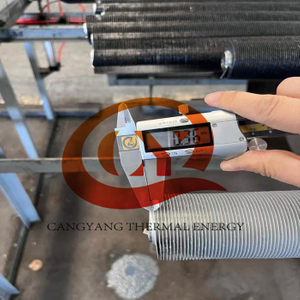

Base Tube Material | Seamless Carbon Steel (SA179, SA192, SA210, SA334 Gr.1) |
Welded Carbon Steel (SA214) | |
Seamless Stainless Steel (SA213 SS304, SS316, A789 S31803/S2205) | |
Welded Stainless Steel (SA249 SS304, SS316) | |
Nickel Alloy (SB163 Alloy 825) | |
Copper (C12200, C70600, C44300, CuNi70/30, CuNi 90/10) | |
Aluminum and Titanium | |
Base Tube OD | 0.4’’~2’’ (10~51mm) |
Base Tube Wall Thick | 0.065’’~0.118’’ (1.65~3.0mm) |
Base Tube Length | Maximum 18280mm (60 feet) |
Fin Material | Al1050, Al1060, Al1100, Al3003, Al6063, Copper |
Fin Height | 0.2’’~0.63’’ (5~16mm) |
Fin Thick | 0.3~0.7mm, Average fin thick is 0.4mm |
Fin Pitch | 3~18FPI |
Output Spindle Rotating speed | 80rpm, 100rpm,120rpm (by changing pulley) |
Fin Rolling Speed | 0.6m/min / 0.75m/min / 0.9m/min |
Main Driving Motor Power | 11kW |
Machine Weight | About 1920kg |
Machine Size | L*W*H 2000*760*1430mm |
Characteristics
Stability and accuracy control of the rolling machine can make consistent root diameter
Accuracy and precision of the finning dies can guarantee the fin spacing
Proper support mandrel can ensure the tube wall thickness and fin height
Pre-roll blank material can avoid cracking and visual deficiencies
Application
Drying kilns
Air cooled Heat Exchanger
Oil Cooler
Air preheater
Dehumidifiers
